GDYD-137 AC Hipot Test Set For Insulated Boom

Brief Description:

AC hi-pot testing is the effective and direct way to test insulation strength for electrical equipment, apparatus, or machines. It checks dangerous flaws which assure electrical equipment continuous working.

Send email to us

Product Detail

Product Tags

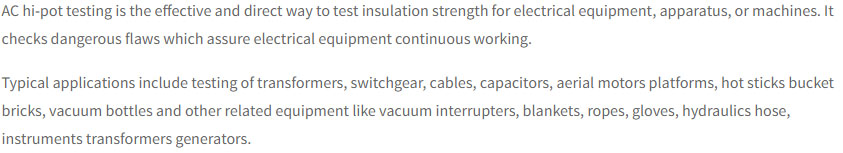

Application

Technical Specifications

Input	AC?220V±?10%, 50Hz, 32.5A, Single phase
Output	0-130kV, 50mA ? 0-36kV, 180mA
Rating	25mA/90mA, continuous working 33.3kV/120mA, 1hour ON/1hour OFF 50mA/180mA, 5mins ON/15mins OFF
Capacity	6.5kVA
HT Source	SF6 gas (Gas testing transformer)
Output control	Manual control
Voltage accuracy	≤ 1.5% (F.S)
Current Accuracy	≤ 1.5% (F.S)
Timing range	?0-99H
Metering	LCD?display, kV meter: there is a switching button, the range is 0-36kVAC if it switches to 36kV, the range is 0-130kVAC if it switches to 130kV mA meter: 0-5.000mA?
Humidity	85% RH
Environmental?temperature	-20℃～50℃
