GDOT-100C Insulation Oil Breakdown Tester 100kV
● LCD screen display.
● Single-chip control, easy to control.
● Wide range watchdog circuit to avoid system halted.
● Unique HV sampling design to make the test data entering into A/D converter directly, to avoid error caused by analog circuit, which will make measurement more accurate.
● Automatic completing all test procedures.
● 1-6 times breakdown voltage value and times will be saved automatically. It will print test results.
● With over-voltage, over-current and short circuit protection.
● Portable design, easy to move.
● Output voltage: 0-100kV
● Power distortion rate: <1%
● Voltage increasing speed: 2.0kV/s, 3.0kV/s. Error 0.2kV/s.
● Display: Large LCD screen
● Electrode gap: standard 2.5mm
● Capacity: 1.5kVA
● Power input: AC220V± 10%, 50Hz/60Hz±1Hz
● Power: 200W
● Working temperature: 0-40℃
● Humidity: <85%RH
● Dimension: 430*390*380mm
● Weight: 26kg
|
GDOT-100C instrument |
? |
1 set |
|

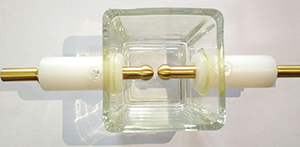

Oil cup |
|
1 piece |
|

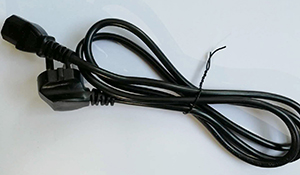

Power cord |
|
1 piece |
|

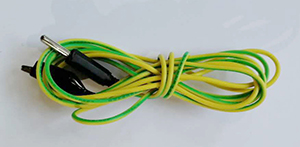

Ground cable |
|
1 piece |
|
Spare fuse |
|
2 piece |
|
Stirring nut |
|
2pcs |
|
Standard 2.5mm |
|
1pcs |
|
Tweezer |
|
1 piece |
|
Print paper |
|
1 roll |
