Input voltage

220V±5%;?frequency 50/60Hz±2%

Measurement range

0-30kV, continuous adjustment, ±5%

Trigger times

6.25 time/s?-?50 times/s

Waveform rising time

0.1-0.5μS

Capacitance error

(+0.3) / (-0.1) μs

Impulse capacitance

0.01μF -0.1μF

Max output energy

60J

Power consumption

1000VA

Insulation resistance

Insulation resistance between power input terminal and tester?≥20MΩ

Dielectric strength

1500V/50Hz at 1min, there is no flashing and breakdown for withstand voltage test.

Temperature

0-40 degree

Relative humidity

≤80% at 40 degree

Waveform capacitance deviation

±3%

Dimension

650*550*1700mm

Weight

100kg

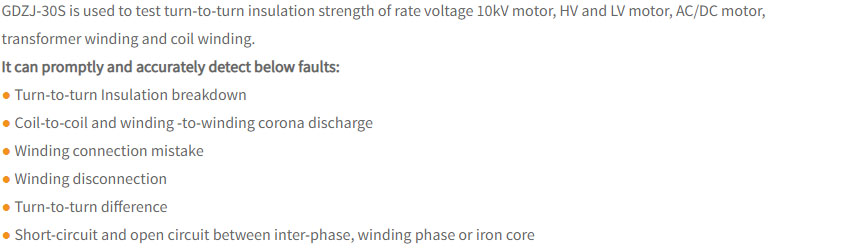

Application

Turn to turn withstand voltage test for rated voltage 10kV motor
